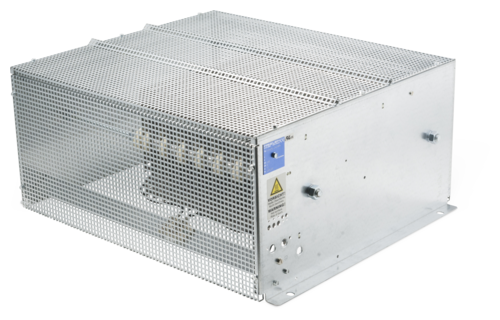

Steel-grid resistor FGFL 31

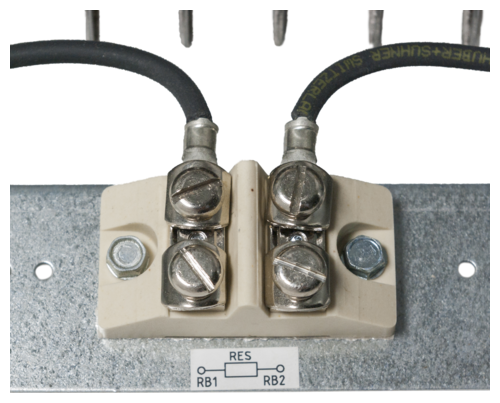

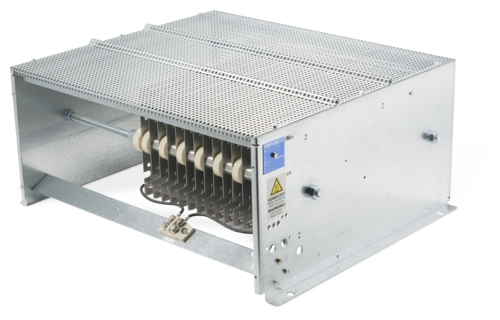

Steel-grid fixed resistor unit, degree of protection IP 20 if mounted on an appropriate surface, with zinc plated steel enclosure. Connection at terminals up to M8 (max. 115 A rated current) which are mounted on a terminal strip inside the unit. You can reach the terminals if part of the cover is removed. If equipped with temperature switch there are 2 additional porcelain terminals inside the unit (FGFLQ).

This is a customizable product. Contact us for a quote.

Category:

Related products

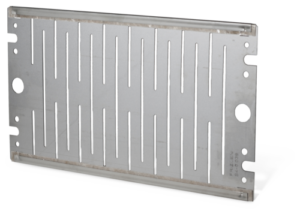

  • Steel-grid resistor S1 – S31

    Steel-grid fixed resistor element, degree of protection IP 00 for integration into devices. Connection at the resistor. This is a customizable product. Contact us for a quote.
    Read more

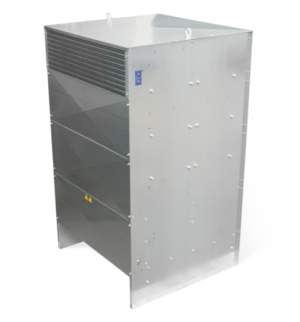

  • Steel-grid resistor FSV 3

    Steel-grid fixed resistor unit, degree of protection IP 23 with weatherproof roof, for outdoor location, air outlet at the side via air deflectors in the upper area. In completely closed zinc sheet enclosure with barrier grid at the bottom and powered ventilation by an integrated ventilator. With air flow monitoring by wind indicator relay. Ceramic insulated flat or bolt terminals of 35A up to 400A in variable combinations available. This is a customizable product. Contact us for a quote.
    Read more

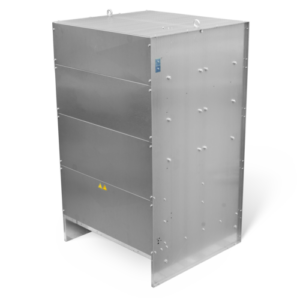

  • Steel-grid resistor FAV 3

    Steel-grid fixed resistor unit, degree of protection IP 20, without weatherproof roof, air outlet on top, In completely closed zinc sheet enclosure with barrier grid at the bottom and powered ventilation by an integrated ventilator. With air flow monitoring by wind indicator relay. Ceramic insulated flat or bolt terminals of 35A up to 400A in variable combinations available. This is a customizable product. Contact us for a quote.
    Read more

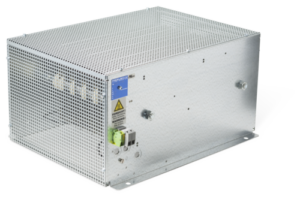

  • Steel-grid resistor FGFD 31

    Steel-grid fixed resistor unit, degree of protection IP 20 if mounted on an appropriate surface, with zinc plated steel enclosure. Construction with feed-through terminals up to max. 65 A that are protected against contact and directly fixed on the mounting plate. It is a space-saving solution for integrating into a switch cabinet. If equipped with temperature switch there are 2 additional protected feed-through terminals (FGFDQ). This is a customizable product. Contact us for a quote.
    Read more
